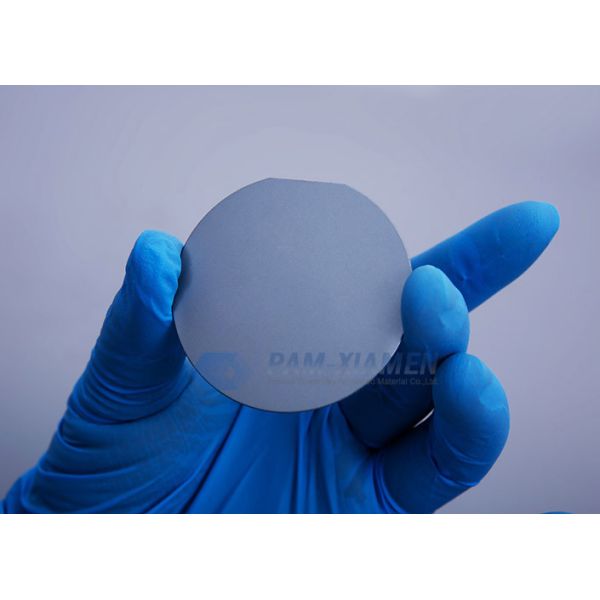

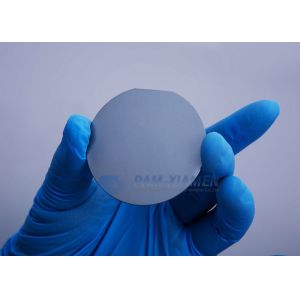

Undoped InAs Semiconductor Wafer , 3”, Prime Grade

PAM-XIAMEN offers InAs wafer – Indium Arsenide which are grown by LEC(Liquid Encapsulated Czochralski) or VGF(Vertical Gradient Freeze) as epi-ready or mechanical grade with n type, p type or undoped in different orientation(111),(100) or (110). PAM-XIAMEN can provide epi ready grade InAs wafer for your MOCVD & MBE epitaxial application .Please contact our engineer team for more wafer information.

3" InAs Wafer Specification

What is a InAs test Wafer?

Most test wafers are wafers which have fallen out of prime specifications. Test wafers may be used to run marathons, test equipment and for high-end R & D. They are often a cost-effective alternative to prime wafers.

Optical properties of InAs wafer

Refractive index n versus photon energy. Solid curve is theoretical calculation. Points represent experimental data, 300 K.

For 3.75 µm < λ < 33 µm
n = [11.1 + 0.71/(1-6.5·λ-2) + 2.75/(1-2085·λ-2) - 6·10-4·λ2)]1/2,
where λ is the wavelength in µn (300 K)

	Normal incidence reflectivity versus photon energy, 300 K
	Absorption coefficient near the intrinsic absorption edge for n-InAs. T=4.2 K
	Absorption coefficient versus photon energy for different donor concentration, 300 K n (cm-3): 1. 3.6·1016, 2. 6·1017, 3. 3.8·1018.

A ground state Rydberg energy RX1= 3.5 meV

	Absorption coefficient versus photon energy, T = 300 K
	Free carrier absorption versus wavelength at different electron concentrations. T=300 K. no (cm-3): 1. 3.9·1018; 2. 7.8·1017; 3. 2.5·1017; 4. 2.8·1016;

Are You Looking for an InAs Wafer?

PAM-XIAMEN is your go-to place for everything wafers, including InAs wafers, as we have been doing it for almost 30 years! Enquire us today to learn more about the wafers that we offer and how we can help you with your next project. Our group team is looking forward to providing both quality products and excellent service for you!
